Car Vent Mount Charging

1. Charging Car Vent Mount x1
2. Charging Cable Routing Clips x3
3. 1m Charging Cable (USB-C to USB-C) x1
4. 12V Cigarette Lighter Power Adapter x1

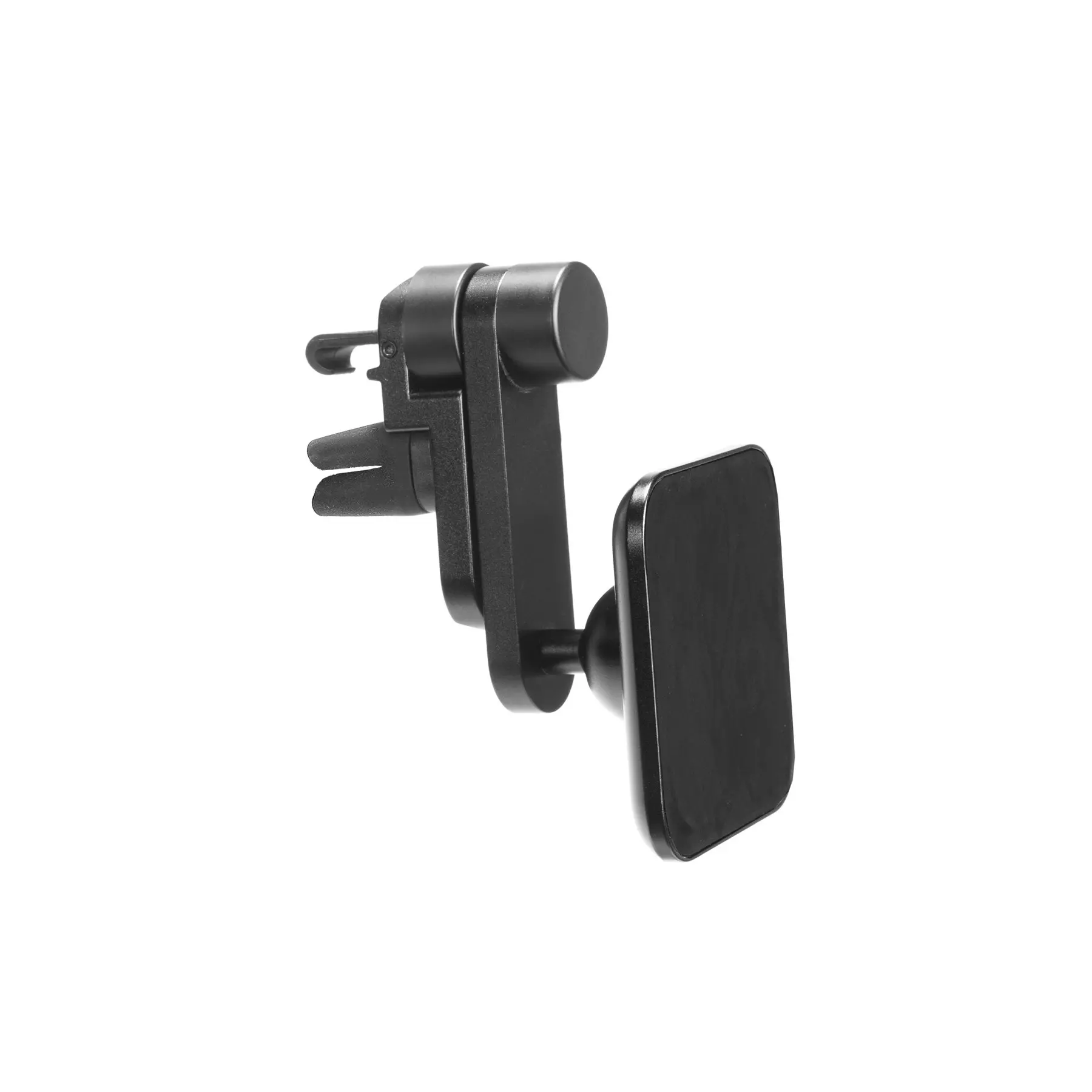

Car Vent Mount

1. Car vent Mount x1

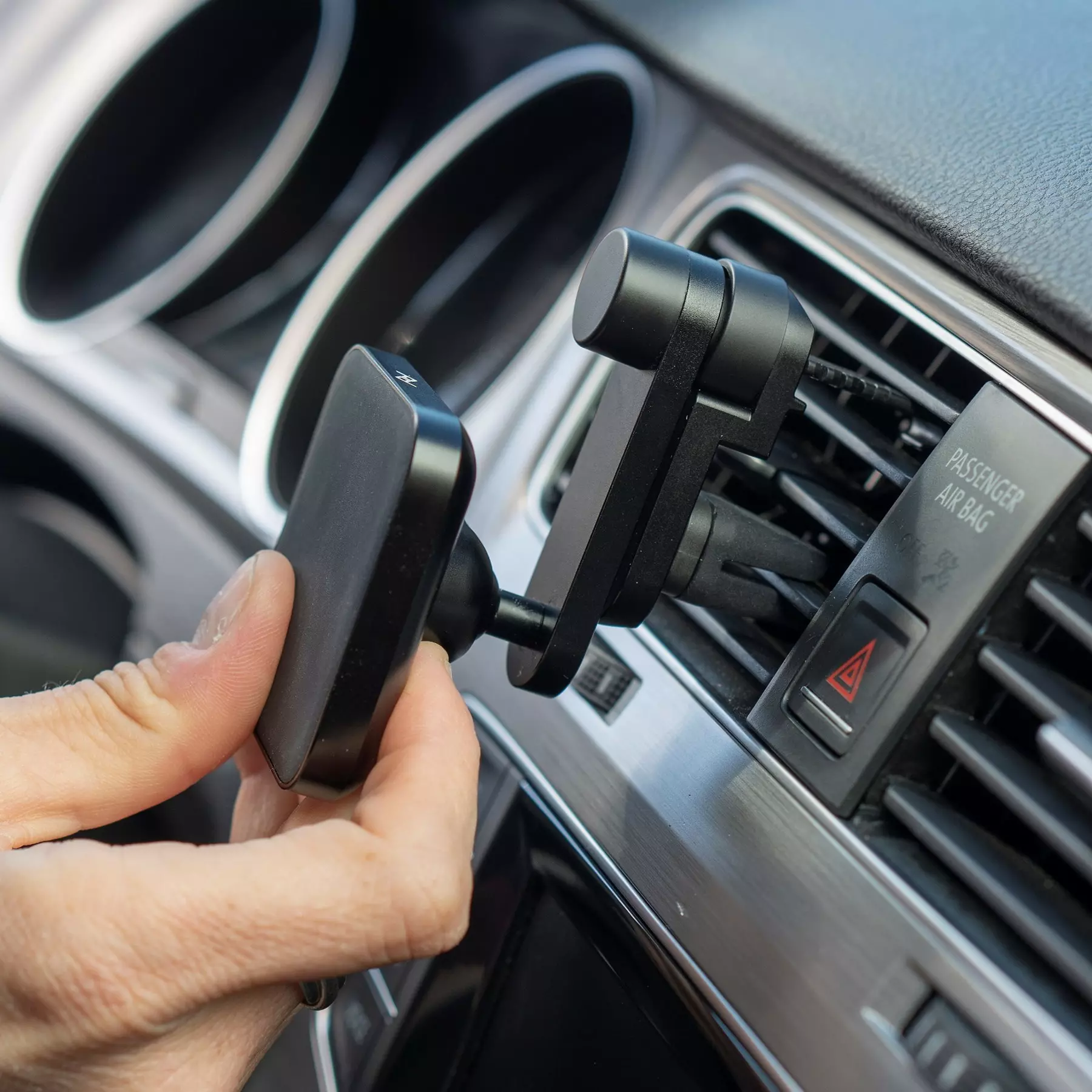

You get what you pay for with car vent mounts, and the Peak Design Car Vent Mount is hands-down the strongest, sturdiest, most adjustable vent mount money can buy. Traditional vent mounts are fraught with frustration: they’re flimsy and prone to falling off, they’re difficult to position, and they completely block airflow. Built from solid machined aluminum, the PD Car Vent Mount fastens to your vent with 2 points of connection for considerably more strength and stability.

A 360-degree swivel arm lets you position your phone away from your vent for better airflow and easier viewing. And to top it off, this mount uses our SlimLink™ mounting system—powerful magnets and a UV-shielded anti-slip pad instantly grab hold of your phone in portrait or landscape. Adjust the viewing angle with a buttery-smooth aluminum ball head. This mount is strong enough for any kind of driving, off-road included.

Available in standard or wireless charging models. With the charging model, the mount’s magnetic connection system ensures perfect charging coil alignment every time. That means more consistent and efficient charging and no more surprise battery outages.

Compatible with many but not all car vents (see compatibility specifications below). Requires a Peak Design Case or Universal Adapter (sold separately). Also works with MagSafe phones and phone cases. Charging may not be possible or optimal when using the Universal Adapter.

BOTH MODELS

• Magnetic phone attachment technology (called SlimLink™) is ultra secure and feels like magic
• Installs on a wide range of vehicle air vents (see compatibility below)
• Exceptional stability compared to other vent mounts thanks to unique clamp connector
• Strong and stable enough for off-road driving
• 360-degree swivel arm lets you position phone right where you want it
• Doesn’t block vent airflow like traditional vent mounts do
• Holds phone in portrait or landscape mode
• Buttery-smooth ball head for viewing angle adjustment, designed by PD tripod engineers
• Rugged machined/anodized aluminum construction
• Easy to remove and install on another vehicle

WIRELESS CHARGING MODEL

• Wirelessly charges your phone as soon as phone is magnetically attached to mount
• Included high-quality 1m USB-C cable and low-profile 12V auto outlet adapter
• Included clips for discreet cable routing

PHONE/CASE COMPATIBILITY (BOTH MODELS)

• Works with any phone with a Peak Design Case or Adapter
• Also works with any MagSafe* phone or case
• Wireless charging may not be possible or optimal when using Universal Adapter

*MagSafe is a registered trademark of Apple, Inc.

VENT COMPATIBILITY (BOTH MODELS)
Can safely connect to heating/cooling vents that meet all of the following criteria:

• Straight horizontal or vertical blades (not curved or circular blades)
• Vent must be at least 63mm (2.5″) wide (vertical blades) or tall (horizontal blades)
• Blade depth must be between 7-23mm (1/4″ to 7/8″)
• Gap between blades must be at least 8mm (5/16”)
• Blades must be secure and not easily removeable
• See install video, packaging, or help center for more info

VENT DIMENSIONS

MADE FOR THESE VENTS:

NOT MADE FOR THESE VENTS:

WHAT’S IN THE BOX

CAR VENT MOUNT CHARGING

1. Charging Car Vent Mount x1
2. Charging Cable Routing Clips x3
3. 1m Charging Cable (USB-C to USB-C) x1
4. 12V Cigarette Lighter Power Adapter x1

CAR VENT MOUNT

1. Car vent Mount x1

NON-CHARGING MODEL

DIMENSIONS
Mount Head: 5.5cm x 5.5cm x 0.7cm (2.2″ x 2.2″ x 0.3″)
Swivel Arm Length: 6.9cm (5cm pivot to pivot)

WEIGHT:
99g (3.5oz)

WIRELESS CHARGING MODEL

DIMENSIONS:
Mount Head: 5.8cm x 5.8cm x 1.2cm (2.3″ x 2.3″ x 0.5″)
Swivel Arm Length: 6.9cm (5cm pivot to pivot)

WEIGHT:
141.4g (4.9oz)
Including charging hardware: 181.2g (6.4oz)

MATERIALS

• Machined/anodized aluminum mounting head & swivel arm
• Grippy silicone mounting pad with Tinuvin 770 UV-stabilizer
• High-temp neodymium mounting magnets
• Glass-reinforced nylon blade hook
• Hardened steel blade clip with silicone overmold
• ABS plastic knobs
